TKXS-400 Robotic Box Erecting Machine

TKXS-400

TKXS-400 Robotic Box Erecting Machine Typical Applications

  • Food & Beverage: snacks, bakery, bottled drinks, dairy products
  • Pharmaceuticals & Healthcare: medicines, medical devices, personal care items
  • Household Products: tissues, detergents, disposables, cleaning supplies
  • Electronics & Industrial Goods: hardware, spare parts, appliances
  • Logistics & E-commerce: carton erection for warehouses and fulfillment centers
Request a quote
Video Introduction

What is TKXS-400 Robotic Box Erecting Machine?

The TKXS-400 is a high-performance robotic case erecting machine built to automate carton forming for high-output production lines. It uses robotic arms to accurately grab and open flat-packed cartons, ensuring consistent box formation before sealing the bottom.

The machine supports two bottom sealing options — hot-melt glue spraying or adhesive tape sealing — giving manufacturers the flexibility to match cost and strength requirements. With servo-driven motion control and durable construction, the TKXS-400 guarantees smooth, precise, and reliable operation, even during extended production runs.

Positioned between mid-range and ultra-high-speed models, the TKXS-400 offers a balance of speed, flexibility, and robust design, making it a dependable choice for manufacturers who require fast, customizable, and consistent carton erection without compromising long-term durability.

Machine Parameters

Specifications TKXS-400 TKXM-500 KXS-400 KXM-500 KXL-650
Servo control 3 3 5 5 5
Box size range L 145-420 mm L 280-500 mm L 145-430 mm L 280-500 mm L 280-650 mm
  W 80-350 mm W 150-400 mm W 85-350 mm W 150-400 mm W 180-500 mm
  H 150-350 mm H 150-400 mm H 105-350 mm H 150-400 mm H 150-500 mm
Erecting speed 15-25 caseses/min 15-25 caseses/min 5-30 caseses/min 5-30 caseses/min 5-25 caseses/min
General power 2.3 Kw 3.0 Kw 2.1 Kw 2.1 Kw 2.35 Kw
Power supply 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz 220V/1Ph/50Hz
Machine weight 550 kg 620kg 620kg 620kg 880kg
Machine dimensions 2400x1900x1400 mm 2600x2000x1450 mm 2400x1900x1350 mm 2845x2000x1400 mm 2920x2100x1500 mm
Adhesive tape

W50mm or below

 W50mm or below W30-W50 W48, W60, W75 W48, W60, W75

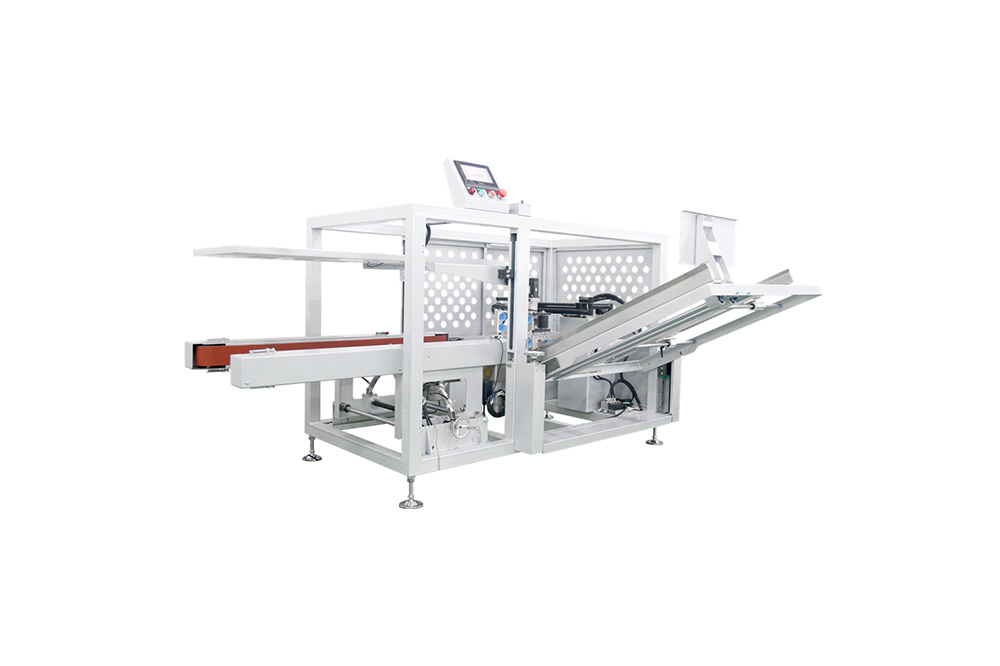

    View Machine



📌 Reference: Internal test data by Soontrue R&D Lab (2024)

Key Features



  • Servo Control System: The TKXS-400 is equipped with an advanced servo control system, ensuring accurate movements of the robotic arms and smooth box handling during the case erecting process. This system ensures high precision, resulting in perfectly shaped cartons every time.
  • Robotic Case Erecting: The machine employs robotic arms to absorb, lift, and open flat boxes with precision, minimizing the chance of jams or misalignment. This feature improves productivity and reduces the need for manual intervention.
  • Dual Bottom Sealing Options: The TKXS-400 offers two bottom-sealing methods: glue spraying or adhesive tape sealing. Glue spraying provides a secure bond for heavy or bulky products, while tape sealing offers a quick and efficient alternative for lighter boxes, giving manufacturers flexibility based on their specific packaging needs.
  • Carbon Steel Body Construction: Built with durable carbon steel, the TKXS-400 is robust and capable of withstanding the rigors of high-speed packaging environments. Its sturdy construction ensures long-lasting performance, making it ideal for industries requiring consistent and reliable box erection.
  • High-Speed Operation: With an erecting speed of 15-25 cases per minute, the TKXS-400 ensures efficient throughput, allowing manufacturers to meet demanding production schedules while maintaining packaging quality.
  • External Compressed Air Requirement: The machine requires an external compressed air source to power the sealing mechanisms and robotic arms, ensuring smooth and continuous operation even in high-pressure production environments.
  • Adjustable Box Size Range: Capable of handling box dimensions from 145-420 mm in length, 80-350 mm in width, and 150-400 mm in height, the TKXS-400 offers flexibility to accommodate a wide range of carton sizes, making it suitable for various industries.
  • Compact and Space-Saving Design: With a compact footprint of 2400 x 1900 x 1400 mm, the TKXS-400 is designed to fit efficiently into existing production lines, maximizing workspace while delivering high-speed performance.







Bag Type

Competitive Advantage

Many conventional case erectors on the market face limitations such as unstable carton opening, frequent jamming, single sealing method, or slow changeovers. The TKXS-400 Robotic Box Erecting Machine overcomes these pain points with:

  • Higher Throughput：While most mid-range case erectors operate below 300 cartons/hour, the TKXS-400 achieves up to 400 cartons/hour, providing faster, more reliable output.
  • Dual Sealing Options：Competitor machines often support only tape sealing; the TKXS-400 offers both hot-melt glue spraying and tape sealing, giving manufacturers cost and strength flexibility.
  • Servo-Driven Accuracy：Unlike traditional pneumatic-only machines that suffer from carton misalignment, the TKXS-400 uses five servo motors for precise, stable, and repeatable forming.
  • Quick Size Adjustments：Many competitor models require time-consuming manual changeovers; the TKXS-400 enables fast carton size switches with minimal downtime.
  • Robust Build Quality：Designed for 24/7 continuous operation, outperforming lighter competitor models that require more frequent maintenance.

This combination of speed, flexibility, and reliability makes the TKXS-400 a stronger investment for manufacturers aiming to balance high performance with adaptability in their packaging operations.



H2 – Why Choose Soontrue?

Choosing Soontrue means working with a trusted partner in end-of-line packaging automation. The TKXS-400 is part of Soontrue's commitment to providing innovative, reliable, and globally supported solutions. Buyers benefit from:

  • Decades of expertise in carton forming and automation.
  • Flexible sealing options to fit specific industry and product needs.
  • Global service support with fast installation, training, and spare parts supply.
  • Future-proof investment through scalable, durable designs.

Soontrue ensures that every machine delivers long-term performance, efficiency, and strong ROI for packaging operations worldwide.



FAQ - TKXS-400 Robotic Box Erecting Machine

Q1: What is the maximum speed of the TKXS-400?
It can erect up to 1500 cartons per hour, making it ideal for medium-to-high-volume production lines.
Q2: What bottom-sealing methods are available?
The machine supports hot-melt glue spraying and adhesive tape sealing, giving buyers flexibility in cost and strength.
Q3: How does the TKXS-400 compare to other models?
The TKXS-400 is faster and more robust than the AIS-200 while offering more flexibility than the ultra-high-speed KXM-500, making it suitable for versatile production needs.
Q4: Can the machine handle multiple carton sizes?
Yes. The servo-driven system allows quick size adjustments, minimizing downtime between different carton formats.
Q5: What industries benefit most from the TKXS-400?
It is widely used in food & beverage, pharmaceuticals, household goods, electronics, and logistics, where efficiency and flexibility are essential.
Q6: Does Soontrue provide after-sales support?
Yes. Soontrue offers on-site installation, operator training, remote technical support, and spare parts supply, ensuring smooth long-term operation.
